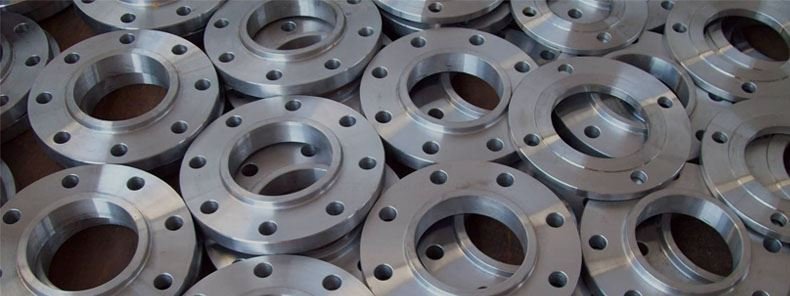

Riddhi Siddhi Metal Impex is a leading SS Flange Manufacturer in Libya. SS Flanges have been designed under the national and international industry rules using high-grade raw materials and advanced technology. Our High-Quality SS Flanges and other products are subjected to various quality checks, and then goes for packaging. We have a ready stock of SS Flanges of different sizes and shapes per the customers’ requirements. Stainless Steel Flanges can be used as a plate to cover or close a pipe’s termination. A blind flange is what this is called. As a result, SS Flanges are considered important internal components that may be used to support mechanical parts or systems.
Stainless Steel Flanges, SS EIL Approved Flange, IBR Approved, ARAMCO SS Approved Flanges Manufacturer, Supplier in Libya
Stainless Steel Flanges are machined with solid forgings. Performance and Dependability have made Riddhi Siddhi Metal Impex the leading Stainless Steel Flanges, SS EIL Approved Flange, IBR Approved, ARAMCO Approved Flanges Stockholder, Manufacturer, Supplier, Importer, and Exporter in Libya. Our SS EIL SS Approved Flanges are reputed and well known across the globe for their reliability and quality. We treat our clients as partners by providing them with our products and services. We are also known as one of the Largest Suppliers of Pipe Fitting.
SS Flanges Price List
| SS Pipe Flange Price List |
Stainless Steel Screwed
Flanges Per Unit (IN) |
SS ASTM A182 Flange (Uae Dirham) | SS Flange Material (Saudi Riyal) |
| Flanges Ss A 182 Gr F304/304l Flange Wn 150 Rf 304/304l Ss Ios Bore Item Flange-Weld Neck-Asme Class(35pcs) | 323 | 16.69 | 17.05 |
| SS Seamless Butt-Welded Flange / Fittings (Pipe Fittings) Grade 904l | 1,336 | 69.05 | 70.53 |
| Flanges SS A 182 Gr F304/304l Flange Wn 150 Rf 304/304l Ss Ios Bore Item Flange-Weld Neck-Asme Class(59pcs) | 385 | 19.90 | 20.32 |
| Flange SS Gr Sa182 F316 Ansi B16.5 Dn 20, 300#Sch 40s, Weld Neck Rf (12pcs) | 476 | 24.60 | 25.13 |
| Flanges SS A 182 Gr F304/304l Flange Wn 150 Rf 20b462 40/S Bore Item Flange-Type-Weld Neck (3pcs) | 811 | 41.92 | 42.81 |
| Flange SS Gr Sa182 F316 Ansi B16.5 Dn25,150#Sch10s, Weld Neck Rf (60pcs) | 487 | 25.17 | 25.71 |
ASTM / ASME / AISI Flanges Dimension & Sizes
| FLANGE NPS |
Outside Diameter |
Bolt Circle (BC) | Raised Face (R) | Raised Face (RF) | Raised Face Thickness (T) |
Flat Face Thickness (T2) |
Bolt Hole (B) | No. of Bolt Holes |
|---|---|---|---|---|---|---|---|---|
| 1/2″ | 3.50″ | 2.38″ | 1.38″ | .063″ | .44″ | .38″ | .62″ | 4 |
| 3/4″ | 3.88″ | 2.75″ | 1.69″ | .063″ | .50″ | .44″ | .62″ | 4 |
| 1″ | 4.25″ | 3.12″ | 2.00″ | .063″ | .56″ | .50″ | .62″ | 4 |
| 1-1/4″ | 4.62″ | 3.50″ | 2.50″ | .063″ | .62″ | .56″ | .62″ | 4 |
| 1-1/2″ | 5.00″ | 3.88″ | 2.88″ | .063″ | .68″ | .62″ | .62″ | 4 |
| 2″ | 6.00″ | 4.75″ | 3.62″ | .063″ | .75″ | .69″ | .75″ | 4 |
| 2-1/2″ | 7.00″ | 5.50″ | 4.12″ | .063″ | .88″ | .82″ | .75″ | 4 |
| 3″ | 7.50″ | 6.00″ | 5.00″ | .063″ | .94″ | .88″ | .75″ | 4 |
| 3-1/2″ | 8.50″ | 7.00″ | 5.50″ | .063″ | .94″ | .88″ | .75″ | 8 |
| 4″ | 9.00″ | 7.50″ | 6.19″ | .063″ | .94″ | .88″ | .75″ | 8 |
| 5″ | 10.00″ | 8.50″ | 7.31″ | .063″ | .94″ | .88″ | .88″ | 8 |
| 6″ | 11.00″ | 9.50″ | 8.50″ | .063″ | 1.00″ | .94″ | .88″ | 8 |
| 8″ | 13.50″ | 11.75″ | 10.62″ | .063″ | 1.12″ | 1.06″ | .88″ | 8 |
| 10″ | 16.00″ | 14.25″ | 12.75″ | .063″ | 1.19″ | 1.13″ | 1.00″ | 12 |
| 12″ | 19.00″ | 17.00″ | 15.00″ | .063″ | 1.25″ | 1.19″ | 1.00″ | 12 |
| 14″ | 21.00″ | 18.75″ | 16.25″ | .063″ | 1.38″ | 1.32″ | 1.12″ | 12 |
| 16″ | 23.50″ | 21.25″ | 18.50″ | .063″ | 1.44″ | 1.38″ | 1.12″ | 16 |
| 18″ | 25.00″ | 22.75″ | 21.00″ | .063″ | 1.56″ | 1.50″ | 1.25″ | 16 |
| 20″ | 27.50″ | 25.00″ | 23.00″ | .063″ | 1.69″ | 1.63″ | 1.25″ | 20 |
| 22″ | 29.50″ | 27.25″ | 25.25″ | .063″ | 1.81″ | 1.75″ | 1.38″ | 20 |
| 24″ | 32.00″ | 29.50″ | 27.25″ | .063″ | 1.88″ | 1.82″ | 1.38″ | 20 |
ASTM / ASME / AISI Flanges Weight Chart
| Nominal Pipe Size |
“A” (O.D.) |
“B” (Thk.) |
“C” (RF Dia.) |
“D” (B.C.D.) |
# Bolt Holes |
Dia. of Bolt Holes |
Approx. Weight |
| 1/2″ | 3-3/4 | 9/16 | 1-3/8 | 2-5/8 | 4 | 5/8 | 2 |
| 3/4″ | 4-5/8 | 5/8 | 1-11/16 | 3-1/4 | 4 | 3/4 | 3 |
| 1″ | 4-7/8 | 11/16 | 2 | 3-1/2 | 4 | 3/4 | 4 |
| 1-1/4″ | 5-1/4 | 3/4 | 2-1/2 | 3-7/8 | 4 | 3/4 | 6 |
| 1-1/2″ | 6-1/8 | 13/16 | 2-7/8 | 4-1/2 | 4 | 7/8 | 7 |
| 2″ | 6-1/2 | 7/8 | 3-5/8 | 5 | 8 | 3/4 | 8 |
| 2-1/2″ | 7-1/2 | 1 | 4-1/8 | 5-7/8 | 8 | 7/8 | 12 |
| 3″ | 8-1/4 | 1-1/8 | 5 | 6-5/8 | 8 | 7/8 | 16 |
| 3-1/2″ | 9 | 1-3/16 | 5-1/2 | 7-1/4 | 8 | 7/8 | 21 |
| 4″ | 10 | 1-1/4 | 6-3/16 | 7-7/8 | 8 | 7/8 | 28 |
| 5″ | 11 | 1-3/8 | 7-5/16 | 9-1/4 | 8 | 7/8 | 37 |
| 6″ | 12-1/2 | 1-7/16 | 8-1/2 | 10-5/8 | 12 | 7/8 | 48 |
| 8″ | 15 | 1-5/8 | 10-5/8 | 13 | 12 | 1 | 79 |
| 10″ | 17-1/2 | 1-7/8 | 12-3/4 | 15-1/4 | 16 | 1-1/8 | 122 |
| 12″ | 20-1/2 | 2 | 15 | 17-3/4 | 16 | 1-1/4 | 183 |
| 14″ | 23 | 2-1/8 | 16-1/4 | 20-1/4 | 20 | 1-1/4 | 241 |
| 16″ | 25-1/2 | 2-1/4 | 18-1/2 | 22-1/2 | 20 | 1-3/8 | 315 |
| 18″ | 28 | 2-3/8 | 21 | 24-3/4 | 24 | 1-3/8 | 414 |
| 20″ | 30-1/2 | 2-1/2 | 23 | 27 | 24 | 1-3/8 | 515 |
| 24″ | 36 | 2-3/4 | 27-1/4 | 32 | 24 | 1-5/8 | 800 |
| 1/16″ raised face included in flange thickness. | |||||||
SS Flange Pressure Rating
| ASME/ANSI B 16.36 | Welding Neck Flange, Slip-on Flange, Threaded Flange |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.5 | Welding Neck Flange, Slip-on Flange, Blind Flange, High Hub Blind Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Ring Type Joint Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | Welding Neck Flange, Blind Flange [Series A & B] |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| BS 4504 SEC 3.1 | Welding Neck Flange, Hubbed Slip-on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange, Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Welding Neck Flange, Hubbed Slip-On Hubbed Threaded, Plate Flange, Loose Plate With Weld-On Plate Collar, Blank Flange |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Welding Neck Flange, Socket Welding Flange, Slip-On Flange, Blind Flange, Screwed Boss Flange, Lapped Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS10 | Welding Neck Flange, Plate Slip-On Flange, Screwed Boss Flange, Slip-On Boss Flange, Blind Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641, 2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637, 2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
