Stainless Steel Flanges Supplier, Stockist & Exporter in Cameroon – Riddhi Siddhi Metal Impex

Riddhi Siddhi Metal Impex is one of the leading Stainless Steel Flanges Supplier, Stockist & Exporter in CameroonStainless Steel Flanges have been designed under the national and international industry rules using high-grade raw materials and advanced technology. Our High-Quality Stainless Steel Flanges and other products are subjected to various quality checks and then goes for packaging. We have a ready stock of Stainless Steel Flanges of different sizes and shapes per the customers’ requirements. Stainless steel flanges can be used as a plate to cover or close a pipe’s termination. A blind flange is what this is called. As a result, Stainless Steel Flanges are considered important internal components that may be used to support mechanical parts or systems.

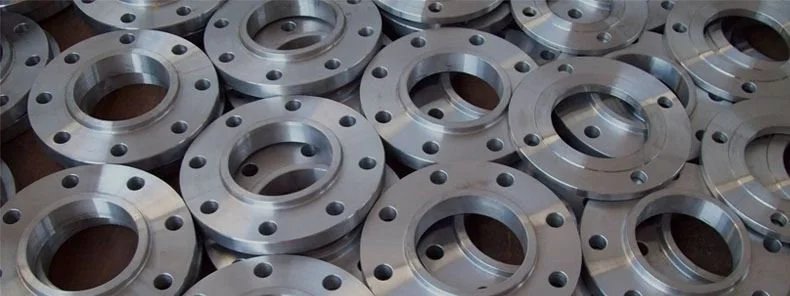

  •  SS Flanges Suppliers in Cameroon

Stainless Steel Flanges are machined with solid forgings. We use top-notch raw materials to create our Stainless SteelFlanges, and our knowledgeable and experienced employees make sure that quality is maintained at every step. In line with national and international standards, our Stainless Steel Flanges are created. Depending on the needs of the customer, we supply Stainless Steel Flanges in a variety of grades and materials, including stainless steel, carbon steel, alloy steel, duplex steel, super duplex steel, inconel, monel, and hastelloy. We are also known as one of the Largest Suppliers of Pipe Fitting.

Riddhi Siddhi Metal Impex is most trusted Stainless Steel Flanges Supplier, Stockist & Exporter in Cameroon.

Riddhi Siddhi Metal Impex is most trusted Stainless Steel Flanges Supplier Stockist & Exporter in Cameroon. Our High-quality Flanges, sensible customer service, and in-house processing capabilities have made us one of the best emerging and leading suppliers for Flanges in Cameroon. Riddhi Siddhi Metal Impex is an ISO 9001:2009 certified company that has been in existence since 2003. A flange is a rim (lip) or an external or interior ridge used for strength. Stainless Steel Split Flanges can also join two objects together, such as Stainless Steel Screwed Flanges on the end of a pipe, a steam cylinder, and so on. Pipes with Stainless Steel Slip-On Pipe Flanges are easier to keep together and take apart.

Stainless Steel Flanges Price List

SS Pipe Flange
Price List
Stainless Steel Screwed Flanges
Per Unit (IN)
SS ASTM A182 Flange (Uae Dirham) SS Flange Material (Saudi Riyal)
Flanges Ss A 182 Gr F304/304l Flange Wn 150 Rf 304/304l Ss Ios Bore Item Flange-Weld Neck-Asme Class(35pcs) 323 16.69 17.05
SS Seamless Butt-Welded Flange / Fittings (Pipe Fittings) Grade 904l 1,336 69.05 70.53
Flanges SS A 182 Gr F304/304l Flange Wn 150 Rf 304/304l Ss Ios Bore Item Flange-Weld Neck-Asme Class(59pcs) 385 19.90 20.32
Flange SS Gr Sa182 F316 Ansi B16.5 Dn 20, 300#Sch 40s, Weld Neck Rf (12pcs) 476 24.60 25.13
Flanges SS A 182 Gr F304/304l Flange Wn 150 Rf 20b462 40/S Bore Item Flange-Type-Weld Neck (3pcs) 811 41.92 42.81
Flange SS Gr Sa182 F316 Ansi B16.5 Dn25,150#Sch10s, Weld Neck Rf (60pcs) 487 25.17 25.71

SS Flanges Application & Uses

  • Transporting materials
  • Automotive industry
  • Homes and buildings
  • Sewerage systems and industrial water lines
  • heating and air-conditioning equipment
  • Plumbing
  • Food Processing Industry
  • Paper & Pulp Industry
  • Food Industry




Applications & Uses

ASTM / ASME / AISI Flanges Dimension & Sizes

FLANGE
NPS
Outside
Diameter
Bolt Circle (BC) Raised Face (R) Raised Face (RF) Raised Face
Thickness (T)
Flat Face
Thickness (T2)
Bolt Hole (B) No. of
Bolt Holes
1/2″ 3.50″ 2.38″ 1.38″ .063″ .44″ .38″ .62″ 4
3/4″ 3.88″ 2.75″ 1.69″ .063″ .50″ .44″ .62″ 4
1″ 4.25″ 3.12″ 2.00″ .063″ .56″ .50″ .62″ 4
1-1/4″ 4.62″ 3.50″ 2.50″ .063″ .62″ .56″ .62″ 4
1-1/2″ 5.00″ 3.88″ 2.88″ .063″ .68″ .62″ .62″ 4
2″ 6.00″ 4.75″ 3.62″ .063″ .75″ .69″ .75″ 4
2-1/2″ 7.00″ 5.50″ 4.12″ .063″ .88″ .82″ .75″ 4
3″ 7.50″ 6.00″ 5.00″ .063″ .94″ .88″ .75″ 4
3-1/2″ 8.50″ 7.00″ 5.50″ .063″ .94″ .88″ .75″ 8
4″ 9.00″ 7.50″ 6.19″ .063″ .94″ .88″ .75″ 8
5″ 10.00″ 8.50″ 7.31″ .063″ .94″ .88″ .88″ 8
6″ 11.00″ 9.50″ 8.50″ .063″ 1.00″ .94″ .88″ 8
8″ 13.50″ 11.75″ 10.62″ .063″ 1.12″ 1.06″ .88″ 8
10″ 16.00″ 14.25″ 12.75″ .063″ 1.19″ 1.13″ 1.00″ 12
12″ 19.00″ 17.00″ 15.00″ .063″ 1.25″ 1.19″ 1.00″ 12
14″ 21.00″ 18.75″ 16.25″ .063″ 1.38″ 1.32″ 1.12″ 12
16″ 23.50″ 21.25″ 18.50″ .063″ 1.44″ 1.38″ 1.12″ 16
18″ 25.00″ 22.75″ 21.00″ .063″ 1.56″ 1.50″ 1.25″ 16
20″ 27.50″ 25.00″ 23.00″ .063″ 1.69″ 1.63″ 1.25″ 20
22″ 29.50″ 27.25″ 25.25″ .063″ 1.81″ 1.75″ 1.38″ 20
24″ 32.00″ 29.50″ 27.25″ .063″ 1.88″ 1.82″ 1.38″ 20

ASTM / ASME / AISI Flanges Weight Chart

Nominal
Pipe
Size
“A”
(O.D.)
“B”
(Thk.)
“C”
(RF Dia.)
“D”
(B.C.D.)
# Bolt
Holes
Dia. of
Bolt Holes
Approx.
Weight
 1/2″ 3-3/4 9/16 1-3/8 2-5/8 4 5/8 2
 3/4″ 4-5/8 5/8 1-11/16 3-1/4 4 3/4 3
 1″ 4-7/8 11/16 2 3-1/2 4 3/4 4
 1-1/4″ 5-1/4 3/4 2-1/2 3-7/8 4 3/4 6
 1-1/2″ 6-1/8 13/16 2-7/8 4-1/2 4 7/8 7
 2″ 6-1/2 7/8 3-5/8 5 8 3/4 8
 2-1/2″ 7-1/2 1 4-1/8 5-7/8 8 7/8 12
 3″ 8-1/4 1-1/8 5 6-5/8 8 7/8 16
 3-1/2″ 9 1-3/16 5-1/2 7-1/4 8 7/8 21
 4″ 10 1-1/4 6-3/16 7-7/8 8 7/8 28
 5″ 11 1-3/8 7-5/16 9-1/4 8 7/8 37
 6″ 12-1/2 1-7/16 8-1/2 10-5/8 12 7/8 48
 8″ 15 1-5/8 10-5/8 13 12 1 79
 10″ 17-1/2 1-7/8 12-3/4 15-1/4 16 1-1/8 122
 12″ 20-1/2 2 15 17-3/4 16 1-1/4 183
 14″ 23 2-1/8 16-1/4 20-1/4 20 1-1/4 241
 16″ 25-1/2 2-1/4 18-1/2 22-1/2 20 1-3/8 315
 18″ 28 2-3/8 21 24-3/4 24 1-3/8 414
 20″ 30-1/2 2-1/2 23 27 24 1-3/8 515
 24″ 36 2-3/4 27-1/4 32 24 1-5/8 800
1/16″ raised face included in flange thickness.

Stainless Steel Flange Pressure Rating

ASME/ANSI B 16.36 Welding Neck Flange, Slip-on Flange, Threaded Flange
PRESSURE CLASS 300, 400, 600, 900, 1500, 2500
ASME/ANSI B 16.5 Welding Neck Flange, Slip-on Flange, Blind Flange, High Hub Blind Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Ring Type Joint Flange
PRESSURE CLASS 150, 300, 400, 600, 900, 1500, 2500
ASME/ANSI B 16.47 Welding Neck Flange, Blind Flange [Series A & B]
PRESSURE CLASS 75, 150, 300, 400, 600, 900
BS 4504 SEC 3.1 Welding Neck Flange, Hubbed Slip-on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange, Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange
PRESSURE CLASS PN 2.5 TO PN 40
BS 4504[PART 1] Welding Neck Flange, Hubbed Slip-On Hubbed Threaded, Plate Flange, Loose Plate With Weld-On Plate Collar, Blank Flange
PRESSURE CLASS PN 2.5 TO PN 400
BS 1560 BOSS Welding Neck Flange, Socket Welding Flange, Slip-On Flange, Blind Flange, Screwed Boss Flange, Lapped Flange
PRESSURE CLASS 150, 300, 400, 600, 900, 1500, 2500
BS10 Welding Neck Flange, Plate Slip-On Flange, Screwed Boss Flange, Slip-On Boss Flange, Blind Flange
TABLE D, E, F, H
DIN FLANGES DIN 2527, 2566, 2573, 2576, 2641, 2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637, 2638, 2673
PRESSURE CLASS PN 6 TO PN 100

Approved Flanges Packing & Delivery Details:-

  1. Payment Modes: LC (Letter of Credit), TT (Telegraphic Transfer or Wire Transfer), Cheque, and others
  2. Packaging: Packaged with caution and safety so they reach our client’s as good as they would expect. Packaging Charges Extra.
  3. Port of Dispatch: Mumbai, Kalamboli, or Bhiwandi ports in the Maharashtra state of India.
  4. Tax: 18% GST

Client Projects for Approved Flanges Supplier in Cameroon:-

we regularly supply to different cities in Cameroon. We have a huge clientele covering more than 55 cities in Cameroon and 33 countries worldwide. Riddhi Siddhi Metal Impex is a name that people trust. Our brand name implies delivery on time, at affordable prices with superior quality Stainless Steel Flanges. We are known as Approved Flanges Supplier and Stockists.

Product supplied City
Ball Flanges for Automobile Industry Yaounde
Globe Flanges supply Douala
Check Flanges supply for Water Supply System Bamenda
Flanges for the Chemical industry Garoua

Stainless Steel Flanges Supplier, Stockist & Exporter in Cameroon- Riddhi Siddhi Metal Impex

Riddhi Siddhi Metal Impex exports Approved Flanges to UAE, European countries, South African Countries, Asian countries, and other continents. We have shipments going to various countries every month. With the increasing clientele, we export 3 containers of Flanges to new locations and ports Each month. We are India’s leading Type of Stainless Steel Flange and have been leading the market for the past few decades.

Countries We Export
Saudi Arabia Oman Kuwait Netherlands Iran
Bahrain Qatar UAE Africa China
Nigeria Mexico Canada Venezuela United Kingdom
United States South Africa Malaysia Bangladesh Turkey
Singapore Sri Lanka Australia Brazil Germany
France Italy South Korea Poland Belgium
