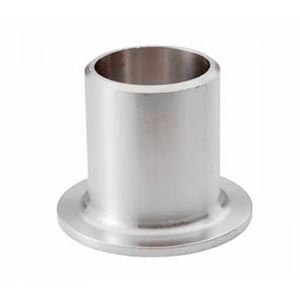

Riddhi Siddhi Metal Impex is one of the leading Stainless Steel Pipe Fittings Stub Ends Lap Joint Manufacturers in Mumbai, India. The Stainless Steel Pipe Fittings Stub Ends Lap Joint we provide has been designed under national and international industry rules using high-grade raw materials and advanced technology. Our ASTM A403 Stainless Steel Pipe Fittings Stub Ends Lap Joint, and other products are subjected to various quality checks, and then goes for packaging. We have a ready stock of Stainless Steel Pipe Fittings Stub Ends Lap Joint of different sizes and shapes per the customers’ requirements. This Pipe Fittings Stub Ends Lap Joint is used in Industrial Sectors like Building & Construction Industry, petrochemical, Oil & Gas Industry, and chemical industries. Moreover, Pipe Fittings Stub Ends Lap Joint can be tailored per our client’s requirements.
ASME B16.9 Pipe Fittings Lap Joint Stub Ends, ASTM A403 Stainless Steel Pipe Fittings Stub Ends Lap Joint, Supplier in India

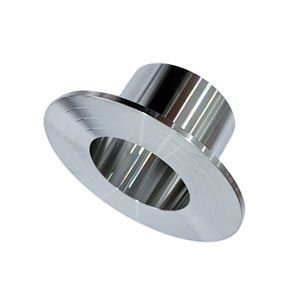

Stainless Steel Pipe Fittings Stub Ends Lap Joint are machined with solid forgings. We are also known as one of the Largest Suppliers of high-quality Stainless Steel Pipe Fittings Stub Ends Lap Joint, Carbon Steel Pipe Fittings Stub Ends Lap Joint, Cupro Nickel Pipe Fittings Stub Ends Lap Joint, Monel Pipe Fittings Stub Ends Lap Joint, and many more. Stainless Steel Pipe Fittings Stub Ends Lap Joint is defined as one of the essential parts of the Pipe Fitting Industry. We provide easy access for cleaning, inspection, or modification. We are also known as one of the Largest Suppliers of Stainless Steel Pipe Fitting Outlets.
Pipe Fitting Stub Ends Lap Joint Specification, Grades, Size & Materials
| Pipe Fitting Stub Ends Lap Joint | |
|---|---|
| Schedule | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Size | ½ NB to 48NB |
| Type | Seamless / ERW / Welded / Fabricated |
| Grade | |
| Stainless steel | ASTM / ASME SA 182 F 304 , 304L , 304H, 309H, 310H , 316 , 316H , 316L , 316 LN , 317 , 317L , 321 , 321H , 347H . |
| Duplex steel | ASTM / ASME SA 815 UNS NO.S 31803 , S 32205 , S 32550 , S 32750 , S 32760. |
| Carbon steel | ASTM / ASME A 234 WPB , WPC ASTM / ASME A 860 WPHY 42 , WPHY 46 , WPHY 52 , WPH 60 , WPHY 65 & WPHY 70 |

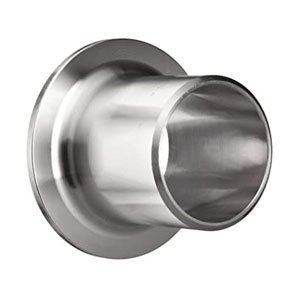

| Alloy steel | ASTM / ASME A 234 WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 23, WP 91 |
Pipe Fitting Stub Ends Lap Joint Stub Ends – ANSI 16.9 Tolerances
| DIMENSIONAL TOLERANCES – STUB ENDS | ||||||
| For all fittings | Stub Ends | |||||
| Nominal Pipe Size (NPS) | Outside Ø at Bevel | Inside Ø at End | Wall Thickness t / t1 |
O.D. of Lap G | Fillet Radius of Lap – R | Overall Length. – F |
| 1/2 a 2 1/2 | 1 | 0,8 | Not | +0 -1 | +0 -1 | 2 |
| 3 a 3 1/2 | 1 | 1,6 | less | +0 -1 | +0 -1 | 2 |
| 4 | +2 -1 | 1,6 | than | +0 -1 | +0 -2 | 2 |
| 5 a 6 | +3 -1 | 1,6 | 87,50% | +0 -1 | +0 -2 | 2 |
| 8 | 2 | 1,6 | of nominal | +0 -1 | +0 -2 | 2 |
| 10 | +4 -3 | 3,2 | thickness | +0 -2 | +0 -2 | 2 |
| 12 to 18 | +4 -3 | 3,2 | +0 -2 | +0 -2 | 3 | |
| 20 a 24 | +6 -5 | 4,8 | +0 -2 | +0 -2 | 3 | |
| 26 a 30 | +7 -5 | 4,8 | ||||
| 32 a 48 | +7 -5 | 4,8 | ||||
Pipe Fitting Stub Ends Lap Joint Dimensions Chart
|
Nominal
Pipe
Size
(NPS) |
Outside Diameter at Bevel | Long Pattern | Short Pattern | Radius of Fillet | Diameter of Lap | |
| Max | Min | F | F | R | G | |
| 1/2 | 22.8 | 20.5 | 76 | 51 | 3 | 35 |
| 3/4 | 28.1 | 25.9 | 76 | 51 | 3 | 43 |
| 1 | 35.0 | 32.6 | 102 | 51 | 3 | 51 |
| 1-1/4 | 43.6 | 41.4 | 102 | 51 | 5 | 64 |
| 1-1/2 | 49.9 | 47.5 | 102 | 51 | 6 | 73 |
| 2 | 62.4 | 59.5 | 152 | 64 | 8 | 92 |
| 2-1/2 | 75.3 | 72.2 | 152 | 64 | 8 | 105 |
| 3 | 91.3 | 88.1 | 152 | 64 | 10 | 127 |
| 3-1/2 | 104.0 | 100.8 | 152 | 76 | 10 | 140 |
| 4 | 116.7 | 113.5 | 152 | 76 | 11 | 157 |
| 5 | 144.3 | 140.5 | 203 | 76 | 11 | 186 |
| 6 | 171.3 | 167.5 | 203 | 89 | 13 | 216 |
| 8 | 222.1 | 218.3 | 203 | 102 | 13 | 270 |
| 10 | 277.2 | 272.3 | 254 | 127 | 13 | 324 |
| 12 | 328.0 | 323.1 | 254 | 152 | 13 | 381 |
| 14 | 359.5 | 354.8 | 305 | 152 | 13 | 413 |
| 16 | 411.0 | 405.6 | 305 | 152 | 13 | 470 |
| 18 | 462 | 456 | 305 | 152 | 13 | 533 |
| 20 | 514 | 507 | 305 | 152 | 13 | 584 |
| 22 | 565 | 558 | 305 | 152 | 13 | 641 |
| 24 | 616 | 609 | 305 | 152 | 13 | 692 |
