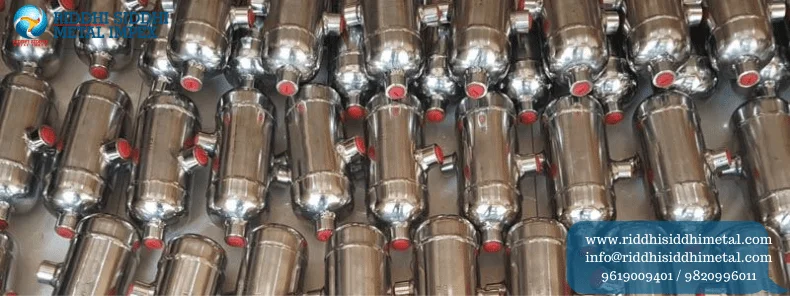

Riddhi Siddhi Metal Impex is one of the leading Stainless Steel Condensate pot Manufacturers in Mumbai, India. The Stainless Steel 316 has been designed under national and international industry rules using high-grade raw materials and advanced technology. Our Stainless Steel ASTM A 106 Gr B and other products are subjected to various quality checks, and then goes for packaging. We have a ready stock of Stainless Steel ANSI B1.20.1 of different sizes and shapes per the customers’ requirements. These Metals are used in Industrial Sectors like Building & Construction Industry, petrochemical, Oil & Gas Industry, and chemical industries. Moreover, the Stainless Steel Condensate pot can be tailored per our client’s requirements.
ANSI B1.20.1 Specification, Grades, Size
| Size | 2″, 3″, 4″ and larger size upon request |
| Length | 8″, 10″, 12″ and larger length upon request. |
| Working pressure | 6000 Psig (413 Bar) |
| Material of construction | SS 316, SS 304, C.S., ASTM A 106 Gr B |
| Pipe Schedule | 40, 80, 160, XX seamless pipe. |
| NPT | As per ANSI B1.20.1, taper pipe thread 1/2″ furnished. |
| Header Inlet | 1” Female BSP or Npt threaded to ASME B16.1 or Flanged inlet optional |
| Header Outlet/drain | None / or ¼” Male Bsp or Npt threaded to ASME B16.1 or 150# cast fitting |
| Outlet Ports | 1-port or 2-port opposite or on alternate sides, ½” Male Bsp or Npt threaded |
Condensate pot Specification, Materials
| Material | Shell | Cap | Pipe Schedule | Test Pressure |
| Carbon Steel | A-106 | A-105 | Sch.40 | 80 Kg / Cm2 |
| Sch.80 | 125 Kg / Cm2 | |||
| Sch.160 | 125 Kg / Cm2 | |||
| Stainless Steel | SS304 | SS304 | Sch.40 | 90 Kg / Cm2 |
| Sch.80 | 150 Kg / Cm2 | |||
| Sch.160 | NA | |||
| Stainless Steel | SS316 | SS316 | Sch.40 | 90 Kg / Cm2 |
| Sch.80 | 150 Kg / Cm2 | |||
| Sch.160 | NA | |||
| Alloy Steel | A-335 | A-182 | Sch.40 | NA |
| A-12 | F-12 | Sch.80 | 125 Kg / Cm2 | |
| Sch.160 | 210 Kg / Cm2 | |||
| Alloy Steel | A-335 | A-182 | Sch.40 | NA |
| A-12 | A-12 | Sch.80 | 125 Kg / Cm2 | |
| Sch.160 | 210 Kg / Cm2 | |||
| Special | Specify | Specify | – | – |
| Monel & Hastelloy | – | – | – | – |
